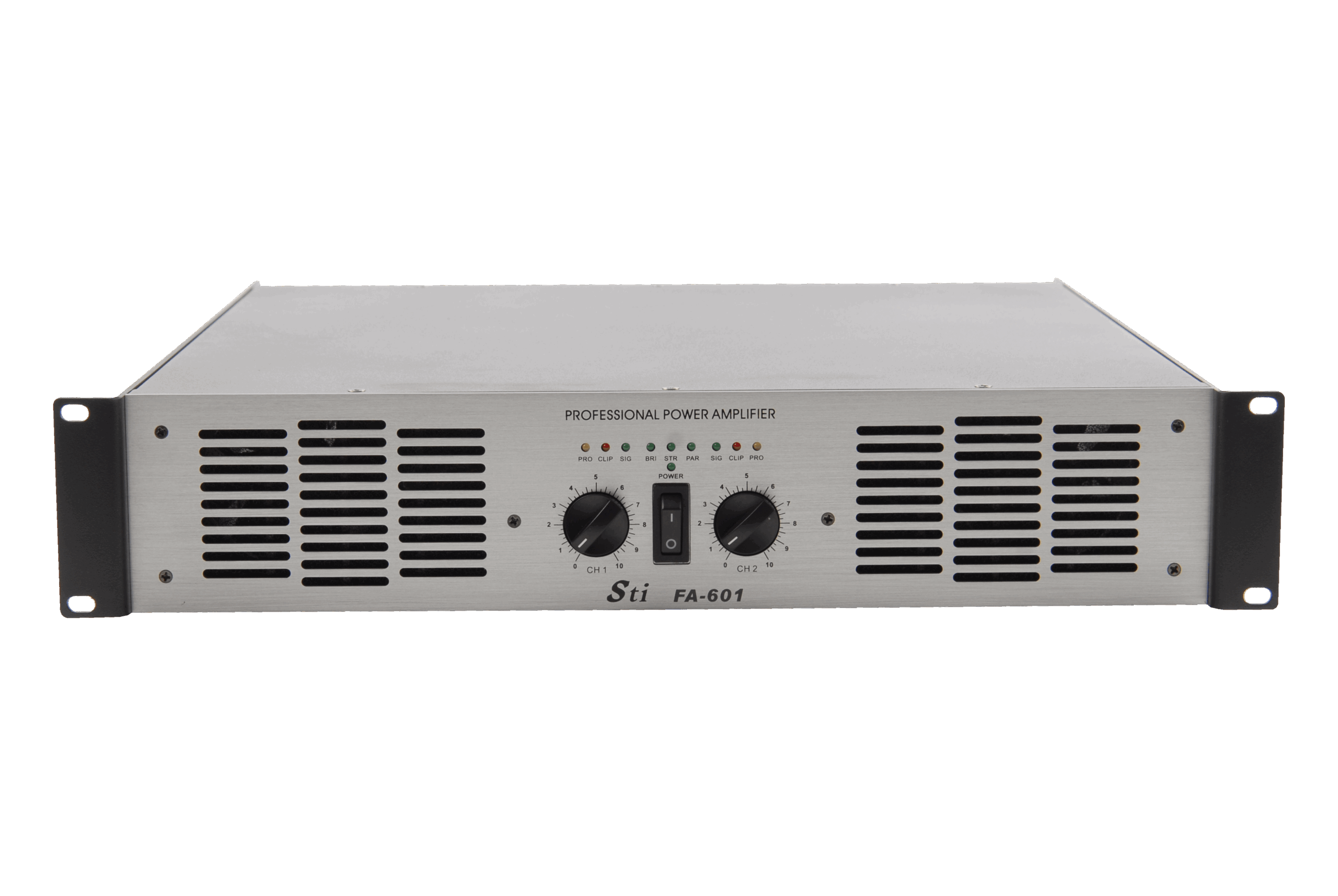

STI FA 601

These compact two channel Class-H design amplifiers provide independent power amplifiers built into a single 2U 19” rack mount chassis. They are ideal for use in environments where individual program sources are required in different building zones. Ideal for use in hotels, function centres, shopping malls and conferance saloons. The unique feature of the Class-H design is the significant reduction in power consumption and heat generation due to the power supply design employed. They utilise active power factor correction power technology allowing a high efficiency rating. The result of which is a much cooler running amplifier (<55°c), offering a long life span and significant power savings for reduced environmental impact. each amplifier is provided with 6.35mm trs xlr connections balanced input from the source 8 ohm line output. channel front panel level controls indicators. both amplifiers are also protected against short circuit, high temperature overload conditions. importantly these protections dedicated channel, so that if fault occurs on one amplifier, other unaffected.

These compact two channel Class-H design amplifiers provide independent power amplifiers built into a single 2U 19” rack mount chassis. They are ideal for use in environments where individual program sources are required in different building zones. Ideal for use in hotels, function centres, shopping malls and conferance saloons. The unique feature of the Class-H design is the significant reduction in power consumption and heat generation due to the power supply design employed. They utilise active power factor correction power technology allowing a high efficiency rating. The result of which is a much cooler running amplifier (<55°c), offering a long life span and significant power savings for reduced environmental impact. each amplifier is provided with 6.35mm trs xlr connections balanced input from the source 8 ohm line output. channel front panel level controls indicators. both amplifiers are also protected against short circuit, high temperature overload conditions. importantly these protections dedicated channel, so that if fault occurs on one amplifier, other unaffected.

Designed specifically to meet the demands of heavy-duty live sound reinforcement touring systems and large-scale installations, the Sti Audio MA-Series power amplifiers uses a proven Class-H topology to deliver reliable, high headroom output power. Engineered with a low noise signal path and a high current, reduced stray magnetic field toroidal transformer to reduce potential hum and noise, the multi -tier power conversion design delivers superior transient response and low measured distortion - equal to the best of analog amplifier design. An impedance aware design deals with the realities of driving typical reactive speaker loads and addresses the associated problems such as thermal shutdown, inductive snap-back, and premature current limiting. Ma Series amplifiers will easily drive reactive phase shifted loads while remaining fully protected against accidental short circuits. An advanced protection scheme ensures the loudspeaker won't experience harmful DC offset voltages while protecting the amplifier from abnormal load, AC power brownout, and high temperature failures. A user-defeat able transparent peak limiter lowers distortion at high power operating conditions, and provides ample protection for the loudspeaker's components. A 'soft turn-on' circuit eliminates transient damage to connected loudspeaker systems and prevents nuisance circuit breaker-tripping during the amplifier's power up procedure. The computer-optimized fan front-to- rear cooling system incorporates ultra-quiet, variable-speed internal fans ensuring that the output power transistors operate with ample thermal margin. Front panel Power, Protect, Activity and Clip LED's are bright and easy to see and all knobs are recessed for safe, easy transportation.
